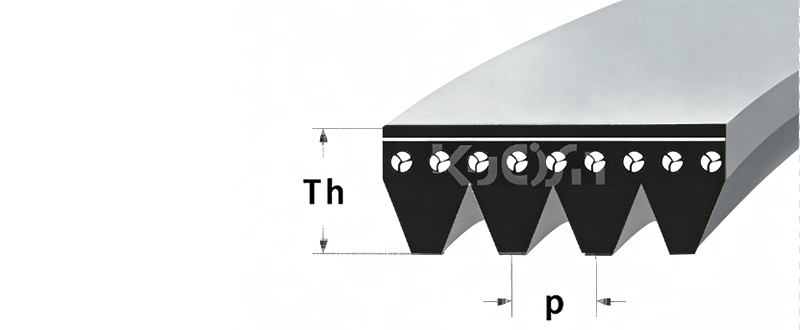

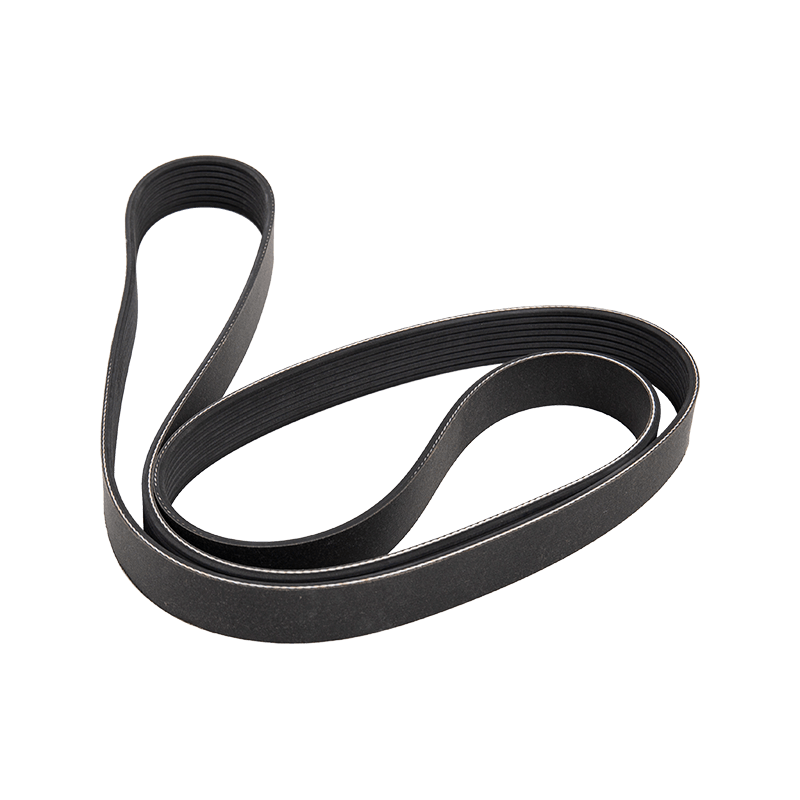

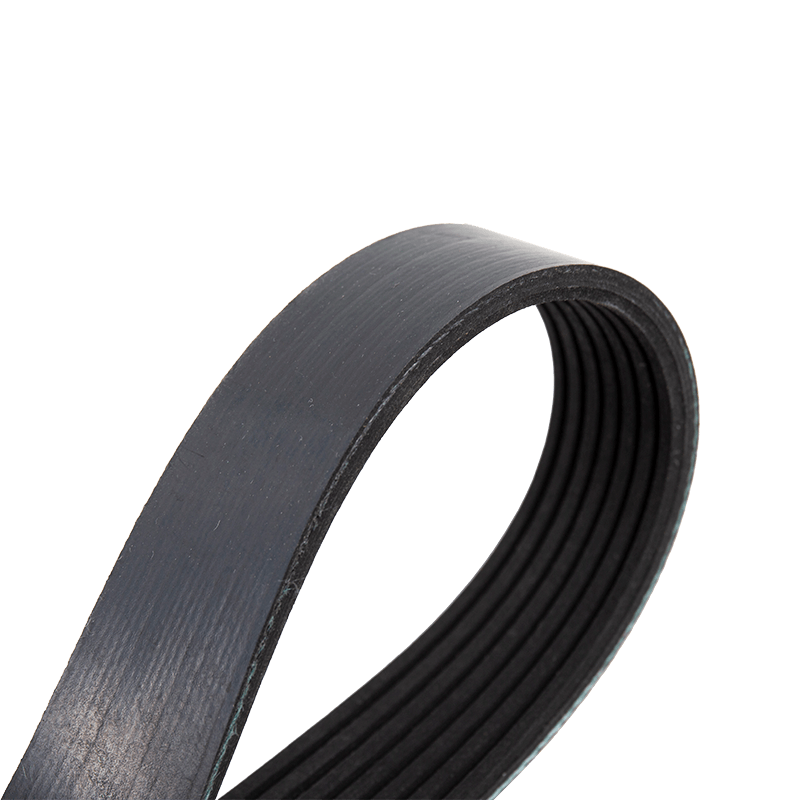

Poly-V belt is an endless rubber transmission belt with multiple parallel longitudinal grooves. It offers advantages such as high transmission capacity and a compact structure. The following is a detailed introduction to its advantages, selling points, and applications:

Product Advantages

High Power Transmission: The large contact area between the poly-V belt and the poly-V pulleys results in high friction and even load distribution, enabling greater power transmission. At the same width, its power transmission can be 30% to 50% higher than that of a conventional V-belt.

Compact Structure: To transmit the same power, poly-V belts require smaller pulley diameters and widths, occupying 25% less space than conventional V-belts, enabling a more compact transmission system.

Smooth Operation: The belt is thin, lightweight, and flexible, generating minimal stress and vibration during operation. It also dissipates heat quickly, resulting in smooth operation and effectively reducing vibration and noise during equipment operation.

High Transmission Efficiency: Transmission efficiency can reach approximately 98%, with a high maximum linear speed of up to 40 m/s and a transmission ratio of up to 10, ensuring efficient power transmission. Long Life: Utilizing steel or polyester cord with low elongation and high tensile and fatigue strength as the tension member, coated with rubber or polyurethane, it offers excellent wear resistance, minimal elongation, and a long service life.
