Model t hs ht Other Product Details 3M 3.00mm 2.40±0.25mm 1.22mm Click For Detai...

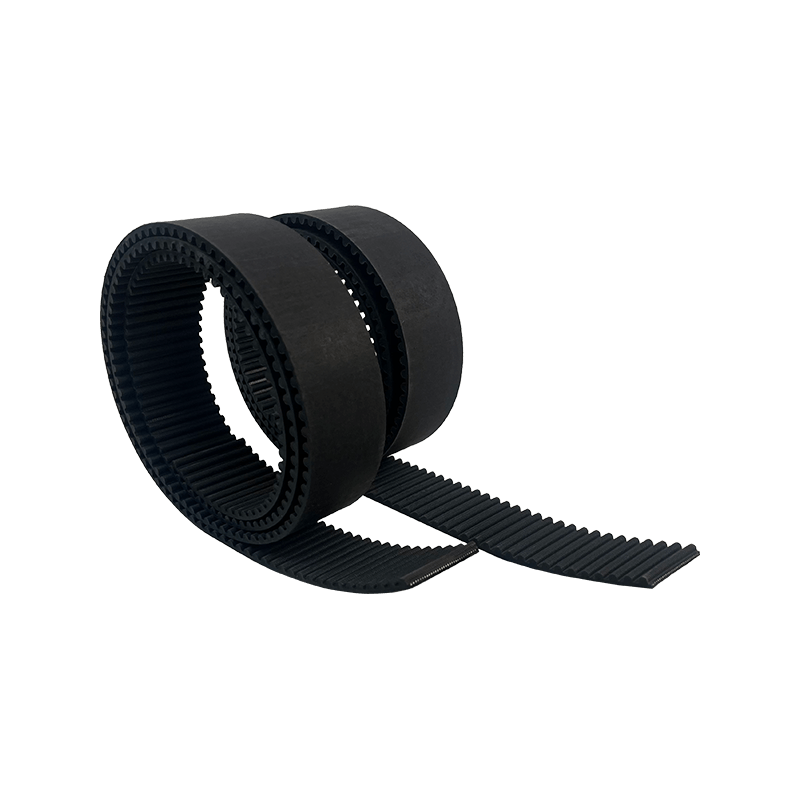

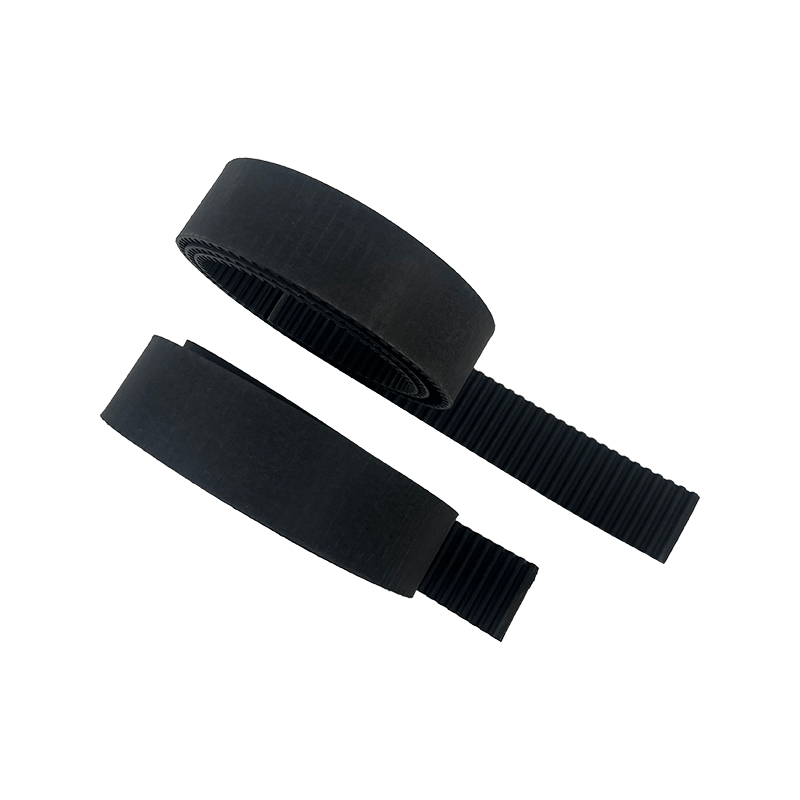

Rubber Open-End timing belts: Product Advantages, Core Selling Points, and Typical Applications
Rubber open-end timing belts are a key category within the synchronous belt family designed for non-closed transmission scenarios. They are constructed in a seamless, long strip (which can be cut to length as needed). Combined with a tensioning mechanism, they achieve power transmission and precise positioning. Their flexible adaptability and reliable transmission performance make them widely used in various linear or length-specific transmission systems. I. Core Product Advantages
The advantages of rubber open-end timing belts revolve around three key areas: "flexible adaptability," "reliable transmission," and "easy installation." These advantages can be categorized into the following four key areas:
Flexible lengths accommodate diverse transmission needs
Precise transmission, zero slip, and stable positioning
Excellent flexibility accommodates complex transmission paths
Weather and temperature resistance adapts to diverse operating conditions
"Cut-and-use" reduces customization and inventory costs
"Joint-free" design eliminates the risk of joint failure
"Lightweight + low resistance" improves equipment energy efficiency
"Easy installation and maintenance" reduces labor costs
Temperature range,depending on application.from -20°c to +100°C
PAH category 2 acc.to “2014 AfPS GS:01 PAK"
Conditionally resistant to oil
Ozone-resistant
Suitable for tropical climates
Aging-resistant
Suitable for reverse flexing/reverse tensioning idlers
Maintenance-free
Antistatic to ISO 9563

Rubber Open-End timing belts: Product Advantages, Core Selling Points, and Typical Applications
Rubber open-end timing belts are a key category within the synchronous belt family designed for non-closed transmission scenarios. They are constructed in a seamless, long strip (which can be cut to length as needed). Combined with a tensioning mechanism, they achieve power transmission and precise positioning. Their flexible adaptability and reliable transmission performance make them widely used in various linear or length-specific transmission systems. I. Core Product Advantages
The advantages of rubber open-end timing belts revolve around three key areas: "flexible adaptability," "reliable transmission," and "easy installation." These advantages can be categorized into the following four key areas:
Flexible lengths accommodate diverse transmission needs
Precise transmission, zero slip, and stable positioning
Excellent flexibility accommodates complex transmission paths
Weather and temperature resistance adapts to diverse operating conditions
Typical Application Scenarios
Rubber open-end timing belts offer "flexible adaptability + precise transmission" Due to its unique characteristics, it is widely used in automation equipment, light industrial machinery, logistics and transportation, and other fields. Specific applications include:
Automation equipment
Linear modules
Robotic drives
Light industrial machinery
Printing equipment
Packaging equipment
Logistics and transportation
Small conveyor lines
Lifting platforms
Medical equipment
Medical equipment drives
Rehabilitation equipment
Other special applications
Textile equipment
Laser cutting equipment
|
Item |
Trapezoidal Teeth |
Arc Teeth |
|||||||||||||||
|
MX L |
XL |
L |
H |
XH |
XXH |
T2.5 |
T5 |
T10 |
T20 |
2M |
3M |
S4.5M |
8M |
14M |
20M |
||
|
Tension Strength ≥ (N/mm) |
45 |
80 |
120 |
270 |
380 |
450 |
45 |
80 |
270 |
380 |
45 |
90 |
160 |
300 |
400 |
520 |
|
|
Reference Rate(N/mm) |
35 |
60 |
90 |
220 |
300 |
360 |
35 |
60 |
220 |
300 |
35 |
70 |
130 |
240 |
320 |
410 |
|
|
Elongation Rate ≤ % |
4.0 |
||||||||||||||||
|
Back hardness |
75° ±5° |
||||||||||||||||
|
Cloth cohesive strength≥(N/mm) |
/ |
5 |
6.5 |
8 |
10 |
12 |
/ |
5 |
8 |
10 |
/ |
/ |
6 |
10 |
12 |
15 |
|
|
Cord cohesive strength ≥ N |
/ |
200 |
380 |
600 |
800 |
1500 |
/ |
200 |
600 |
800 |
/ |
/ |
400 |
700 |
1200 |
1600 |
|
|
Tooth shear strength ≥(N/mm) |
/ |
50 |
60 |
70 |
75 |
90 |
/ |
50 |
70 |
75 |
/ |
/ |
50 |
60 |
80 |
100 |
|
|
Note: the tension strength in this table is subject to the result for cutted belt,when adopting endless belt, please dividing tested result by two then comparing with the value in this sheet. |
|||||||||||||||||
