Small V Belt Pulleys for Small and Medium Equipment Drives

Core Selling Points

Extreme Versatility: V-belts are manufactured in standardized models (e.g., Type A, Type B, and Type C), and the pulley grooves also conform to uniform specifications. Products from different brands and manufacturers are interchangeable, eliminating the need for custom purchases and replacements.
Simple and Easy Integration: The pulley design is compact, eliminating the need for complex lubrication systems and protective devices, making it easily integrated into various small and medium-sized equipment. It is particularly suitable for applications with limited space and low transmission accuracy requirements.
Excellent Environmental Resistance: The cast iron and cast aluminum pulleys are dust- and oil-resistant.
V-belts are available in oil- and heat-resistant versions, ensuring operation in harsh, dusty and oil-prone environments such as factory workshops and agricultural fields. Flexible transmission ratio adjustment: By replacing pulleys of different diameters, the driven pulley's speed can be easily adjusted (e.g., increasing the driven pulley diameter reduces speed, reducing it increases speed) without modifying other equipment structures.

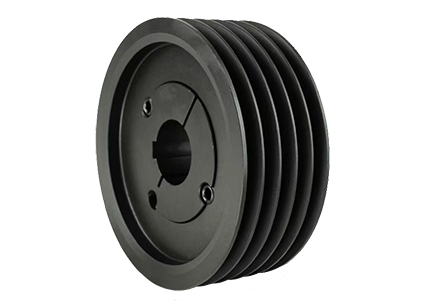

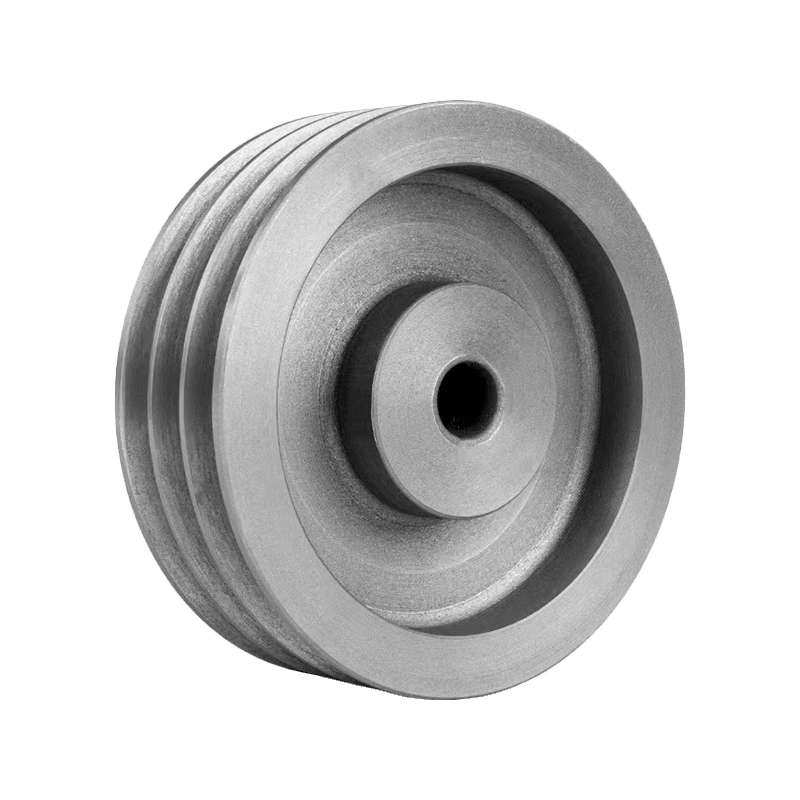

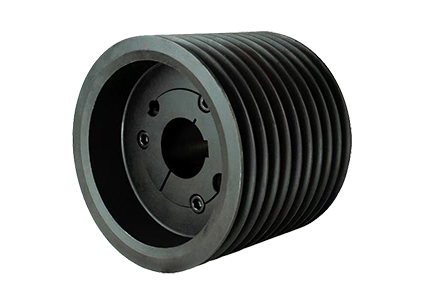

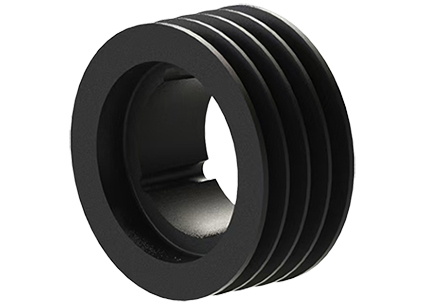

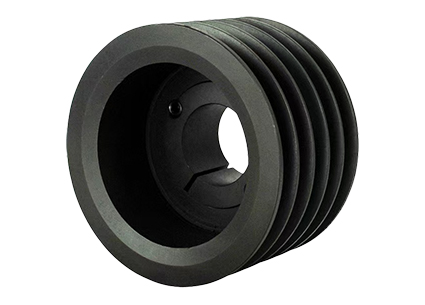

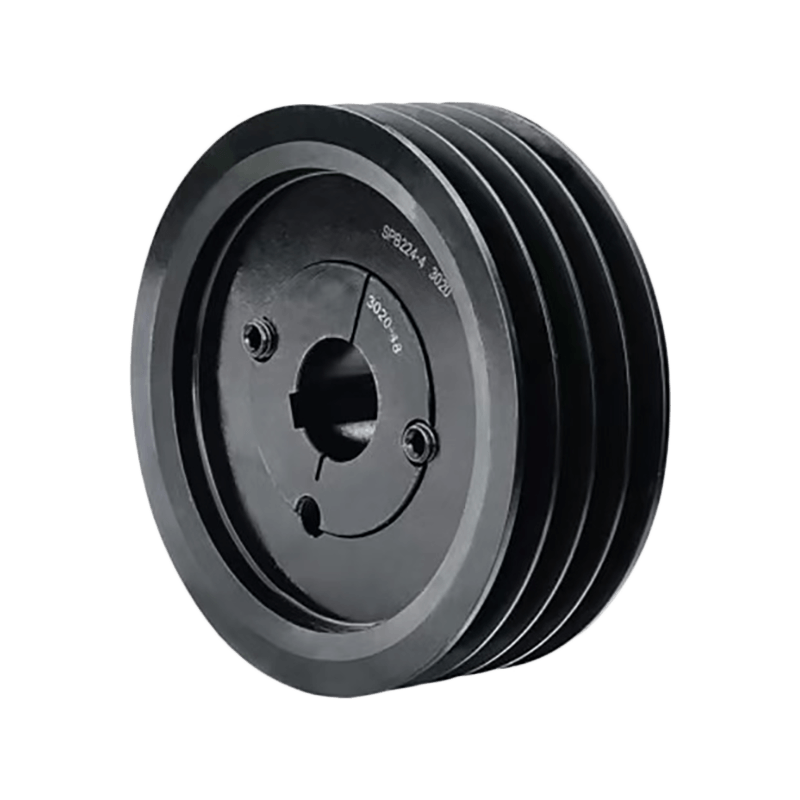

V-belt pulleys for small and medium-sized equipment

Product Experience

Rotate to view our products and gain a detailed understanding of their appearance features.

Product Description

V-belt pulleys utilize friction between the V-belt and the pulley grooves for transmission. Their core advantages are low cost and simple installation and maintenance, making them one of the most basic and popular transmission components in both industrial and consumer applications.

Product Advantages

Stable and cushioning transmission: The rubber material of the V-belt absorbs shock and vibration during transmission. It slips during short-term overloads, protecting the motor and load from damage and reducing the risk of failure.
Low cost and easy replacement: Pulleys are typically made of low-cost materials such as cast iron and cast aluminum, and the production process is mature. The V-belt itself is inexpensive, and wear requires only belt replacement, eliminating the need for pulley repairs, resulting in low overall operating costs.
Easy installation and high tolerance: The center distance between the driving and driven pulleys requires minimal precision, so minor installation deviations will not significantly affect transmission performance. Belt replacement and tensioning can be easily performed by the average person without specialized tools. Wide Applicable Speed Range: Suitable for a wide range of operating conditions, from low speeds (such as conveyors) to medium- and high-speeds (such as fans and pumps), with transmission speeds ranging from 0.5m/s to 25m/s, meeting the speed requirements of most general-purpose machinery.

Automotive Industry

Main Applications

Agricultural Machinery: Such as the tiller and seeding drive of tractors, and the conveyor drive of harvesters. Its dust and impact resistance allows it to adapt to complex field environments.

General Industrial Equipment: Including fans, water pumps, air compressors, crushers, etc., V-belt pulleys transmit power, meeting the equipment's medium-to-low speed, high-torque transmission requirements with low maintenance costs.

Construction Machinery: Such as the auxiliary mechanisms (such as fans and hydraulic pumps) of loaders and rollers. Under severe vibration conditions, the V-belt protects core components by preventing slippage, improving equipment reliability.

Civil and Small Equipment: For example, small generators, grinding machines, woodworking table saws, and early models of washing machines. Its low cost and ease of installation reduce overall manufacturing costs and user maintenance.

Mining and building materials machinery: such as small belt conveyors and auxiliary drives of sand making machines. The high-strength material of the pulley can withstand large loads, and the belt's slip characteristics can avoid equipment damage caused by overload.
