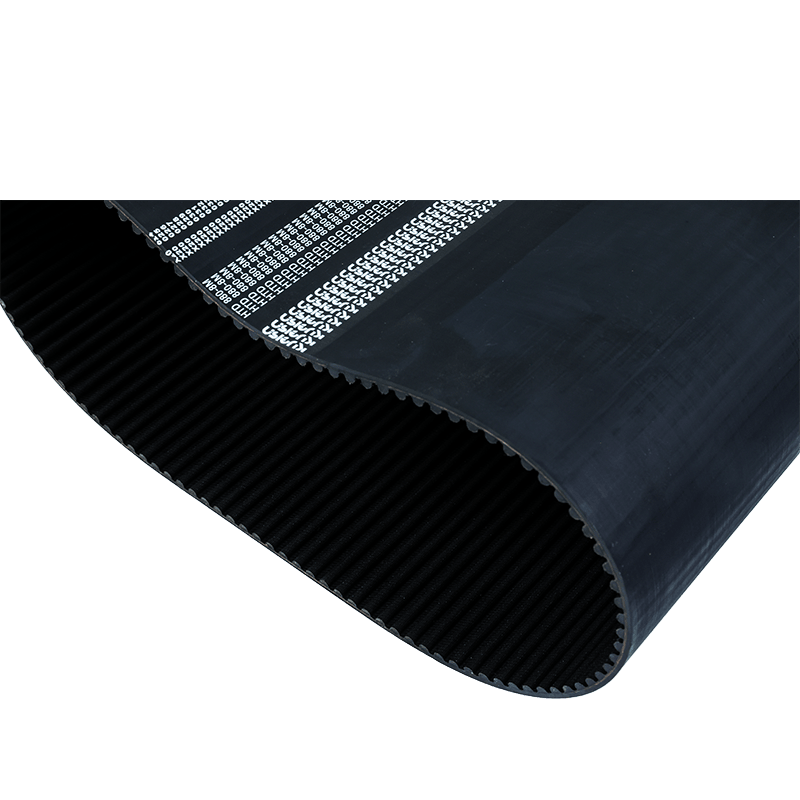

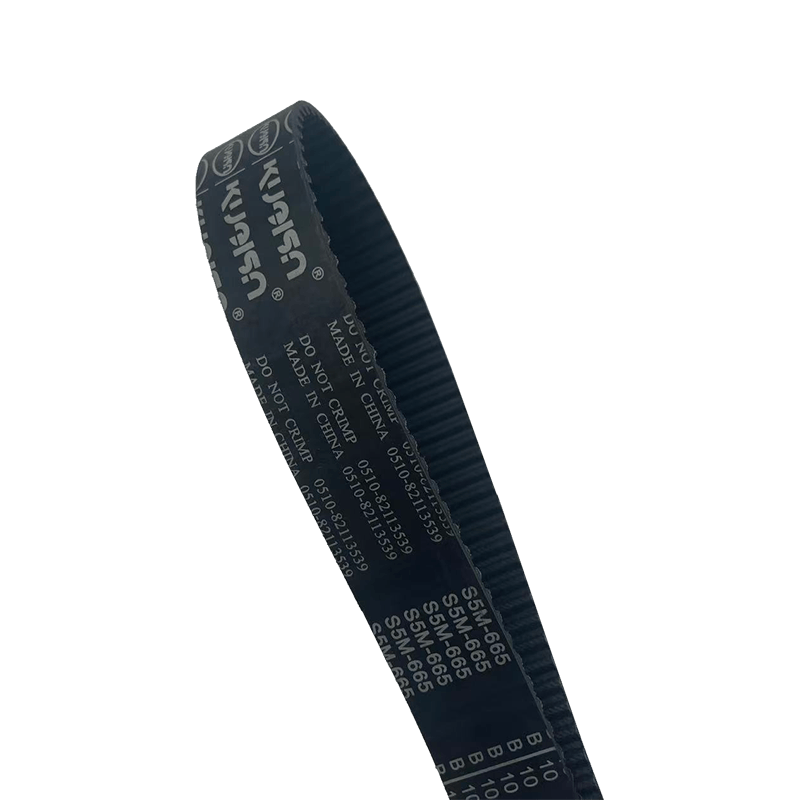

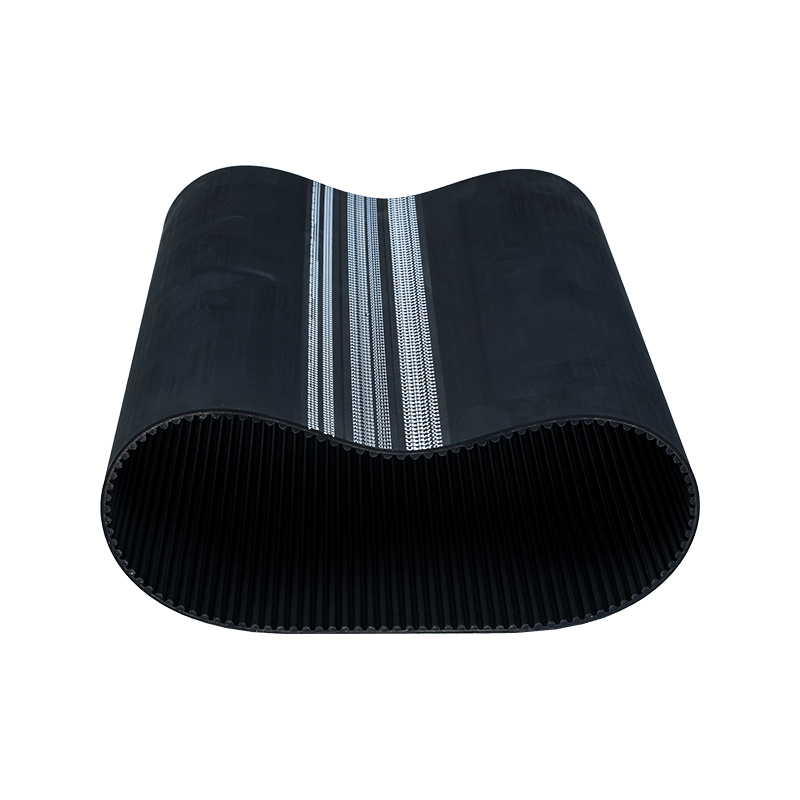

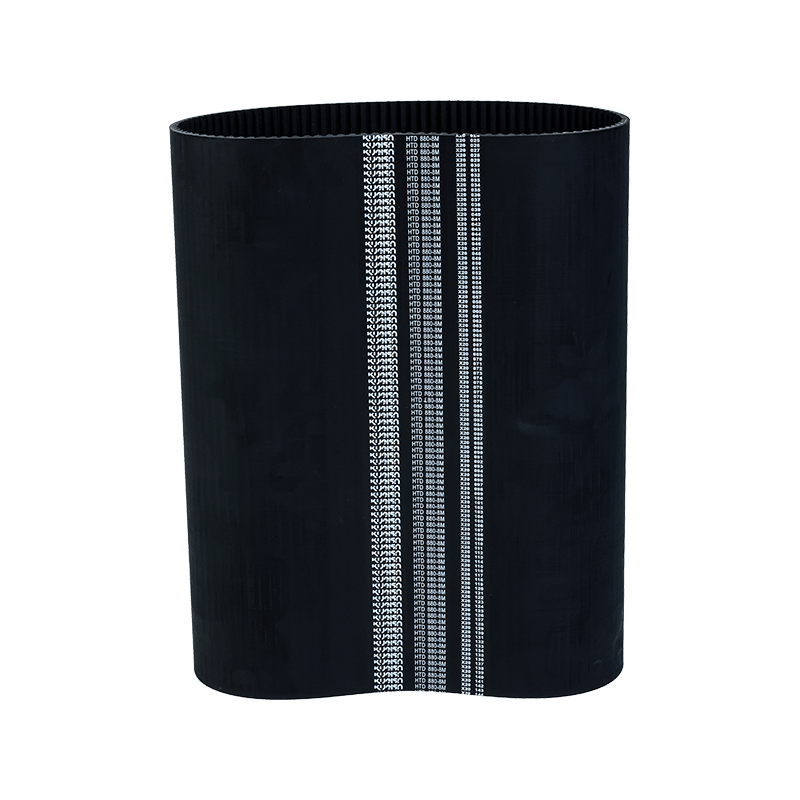

KUEISN White Label Rubber Timing Belt (Classic Type)

Rubber Timing Belts

KUEISN White Label Rubber Timing Belt (Classic Type)

KUEISN White Label Rubber Belts (Classic Type), relying on Jiuyixin's comprehensive quality control system and mature rubber transmission technology, inherit the core characteristics of the classic model's high cost-effectiveness and high adaptability. Its advantages can be seen in three core dimensions: transmission stability, durability, and application scenarios:

1. Superior transmission stability, ensuring efficient and smooth power transmission.

2. Stronger wear resistance and damage resistance, resulting in a service life far exceeding that of ordinary white label products.

3. Wider applicability, meeting both general working conditions and cost-effectiveness requirements.

  • Features

  • 3D Rendering

  • Video

  • Other Information

  • Recommended Products


  • High efficiency
  • Minimum elongation
  • Low noise
  • REACH and RoHS
  • Temperature range -25°C to +100°C
KUEISN White Label Rubber Timing Belt (Classic Type)
PRODUCT PARAMETERS

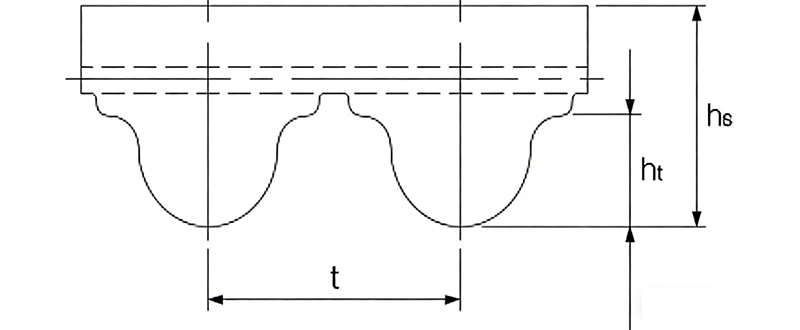

Model t hs ht Other Product Details
RPP3M 3.00mm 2.40±0.25mm 1.27mm Click For Details
RPP5M 5.00mm 3.80±0.25mm 2.15mm Click For Details
RPP8M 8.00mm 5.40±0.25mm 3.20mm Click For Details
RPP14M 14.00mm 9.70±0.25mm 6.00mm Click For Details
3M 3.00mm 2.40±0.25mm 1.22mm Click For Details
5M 5.00mm 3.80±0.25mm 2.06mm Click For Details
8M 8.00mm 6.00±0.25mm 3.38mm Click For Details
14M 14.00mm 10.00±0.25mm 6.02mm Click For Details
20M 20.00mm 13.20±0.25mm 8.40mm Click For Details
S2M 2.00mm 1.36±0.25mm 0.76mm Click For Details
S3M 3.00mm 2.20±0.25mm 1.14mm Click For Details
S4.5M 4.50mm 2.81±0.25mm 1.71mm Click For Details
S5M 5.00mm 3.40±0.25mm 1.91mm Click For Details
S8M 8.00mm 5.30±0.25mm 3.05mm Click For Details
S14M 14.00mm 10.20±0.25mm 5.30mm Click For Details
