OEM/ODM KUEISN EPDM Rubber Timing Belt
Home / Products / Rubber Timing Belts / KUEISN EPDM Rubber Timing Belt

KUEISN EPDM Rubber Timing Belt

Rubber Timing Belts

KUEISN EPDM Rubber Timing Belt

KUEISN EPDM rubber belts use high-quality EPDM (ethylene propylene diene monomer) rubber as the core base material, focusing on the core positioning of "weather resistance and durability, and wide applicability." They fully leverage the inherent advantages of EPDM material, which can be seen in three core dimensions: transmission stability, environmental resistance, and application scenarios:

1. Excellent transmission stability: Provides smooth and stable power transmission, and is less prone to deformation or slippage, suitable for various conventional transmission needs.

2. Outstanding EPDM material characteristics: Excellent weather resistance, high and low temperature resistance, and ozone resistance; not prone to aging or cracking, resulting in a service life far exceeding that of ordinary rubber belts.

3. Wide applicability: Can handle a variety of complex environments, combining practicality and reliability, and is suitable for conventional and special transmission needs in multiple industries.

  • Features

  • 3D Rendering

  • Video

  • Other Information

  • Recommended Products


  • High power
  • High speed drives
  • High efficiency
  • Superior flexibility
  • Low noise
  • ISO 9563
  • REACH and RoHS
  • Antistatic
  • Oil resistance
  • Heat resistance
  • Temperature range -35°C to +130°C
KUEISN EPDM Rubber Timing Belt
PRODUCT PARAMETERS

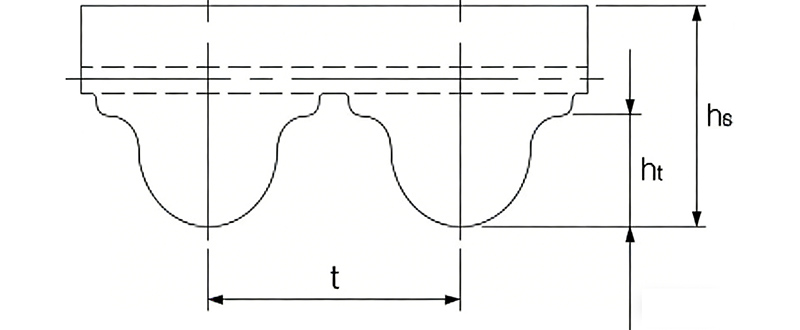

Model t hs ht Other Product Details
RPP3M 3.00mm 2.40±0.25mm 1.27mm Click For Details
RPP5M 5.00mm 3.80±0.25mm 2.15mm Click For Details
RPP8M 8.00mm 5.40±0.25mm 3.20mm Click For Details
RPP14M 14.00mm 9.70±0.25mm 6.00mm Click For Details
3M 3.00mm 2.40±0.25mm 1.22mm Click For Details
5M 5.00mm 3.80±0.25mm 2.06mm Click For Details
8M 8.00mm 6.00±0.25mm 3.38mm Click For Details
14M 14.00mm 10.00±0.25mm 6.02mm Click For Details
20M 20.00mm 13.20±0.25mm 8.40mm Click For Details
S2M 2.00mm 1.36±0.25mm 0.76mm Click For Details
S3M 3.00mm 2.20±0.25mm 1.14mm Click For Details
S4.5M 4.50mm 2.81±0.25mm 1.71mm Click For Details
S5M 5.00mm 3.40±0.25mm 1.91mm Click For Details
S8M 8.00mm 5.30±0.25mm 3.05mm Click For Details
S14M 14.00mm 10.20±0.25mm 5.30mm Click For Details
