KUEISN Red Label Rubber Timing Belt (Reinforced Type)

Rubber Timing Belts

KUEISN Red Label Rubber Timing Belt (Reinforced Type)

KUEISN Red Label Rubber Belts (Reinforced Type) feature a comprehensive upgrade in materials and structure based on the classic model, focusing on the core positioning of "reinforced type." Its advantages can be seen in three key dimensions: power transmission capacity, durability, and application scenarios:

1. Stronger power transmission and more stable power delivery, suitable for heavy-duty applications.

2. Upgraded wear resistance, damage resistance, and anti-aging performance, significantly extending service life.

3. Wider applicability, capable of handling complex working conditions, combining practicality and reliability.

  • Features

  • 3D Rendering

  • Video

  • Other Information

  • Recommended Products


  • High power
  • High efficiency
  • Low noise
  • ISO 9563
  • Minimum elongation
  • REACH and RoHS
  • Antistatic
  • Oil resistance
  • High resistance
  • Temperature range -25°C to +100°C
KUEISN Red Label Rubber Timing Belt (Reinforced Type)
PRODUCT PARAMETERS

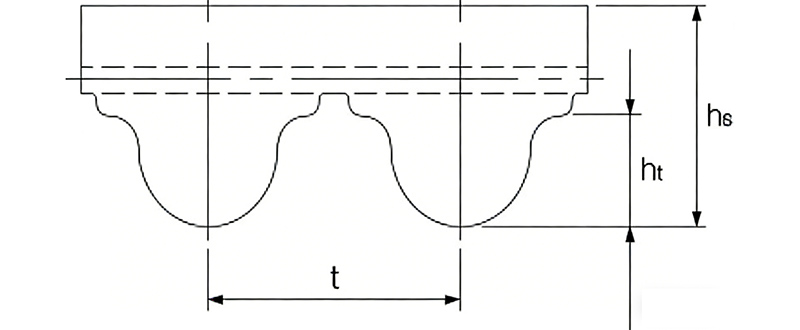

Model t hs ht Other Product Details
RPP3M 3.00mm 2.40±0.25mm 1.27mm Click For Details
RPP5M 5.00mm 3.80±0.25mm 2.15mm Click For Details
RPP8M 8.00mm 5.40±0.25mm 3.20mm Click For Details
RPP14M 14.00mm 9.70±0.25mm 6.00mm Click For Details
3M 3.00mm 2.40±0.25mm 1.22mm Click For Details
5M 5.00mm 3.80±0.25mm 2.06mm Click For Details
8M 8.00mm 6.00±0.25mm 3.38mm Click For Details
14M 14.00mm 10.00±0.25mm 6.02mm Click For Details
20M 20.00mm 13.20±0.25mm 8.40mm Click For Details
S2M 2.00mm 1.36±0.25mm 0.76mm Click For Details
S3M 3.00mm 2.20±0.25mm 1.14mm Click For Details
S4.5M 4.50mm 2.81±0.25mm 1.71mm Click For Details
S5M 5.00mm 3.40±0.25mm 1.91mm Click For Details
S8M 8.00mm 5.30±0.25mm 3.05mm Click For Details
S14M 14.00mm 10.20±0.25mm 5.30mm Click For Details
