OEM/ODM KUEISN Gold Label Rubber Timing Belt (Super Strong Type)
Home / Products / Rubber Timing Belts / KUEISN Gold Label Rubber Timing Belt (Super Strong Type)

KUEISN Gold Label Rubber Timing Belt (Super Strong Type)

Rubber Timing Belts

KUEISN Gold Label Rubber Timing Belt (Super Strong Type)

The design of KUEISN Gold Standard Rubber Belts (Ultra-Strong Type) fundamentally addresses the shortcomings of ordinary rubber belts, conventional white label, and reinforced red label products, such as "insufficient adaptation to ultra-high loads, weak tensile and creep resistance, and poor tolerance to extreme working conditions." Leveraging Jiuyixin's comprehensive quality control system and high-end rubber transmission technology, and using a "rubber plus carbon fiber" core material combination, it achieves a leap in performance beyond reinforced types, focusing on the "ultra-strong" core positioning. Its advantages can be seen in three core dimensions: transmission load capacity, durability, and adaptability to various scenarios:

1. Ultra-strong transmission load capacity, precise and stable power transmission, easily adapting to ultra-high load conditions.

2. Synergistic effect of rubber and carbon fiber, significantly improving wear resistance, aging resistance, and creep resistance, resulting in a significantly longer service life than reinforced products.

3. Extremely strong adaptability, capable of handling various extreme and complex working conditions, combining superior performance with scenario flexibility.

  • Features

  • 3D Rendering

  • Video

  • Other Information

  • Recommended Products


  • Unique top-profile
  • Superior Belt grip
  • Wear-resistant
  • Strong bonding
  • REACH and RoHS
  • Free set
  • Antistatic
  • Oil resistance
  • Heat resistance
  • Temperature range -18°C to +80°C
KUEISN Gold Label Rubber Timing Belt (Super Strong Type)

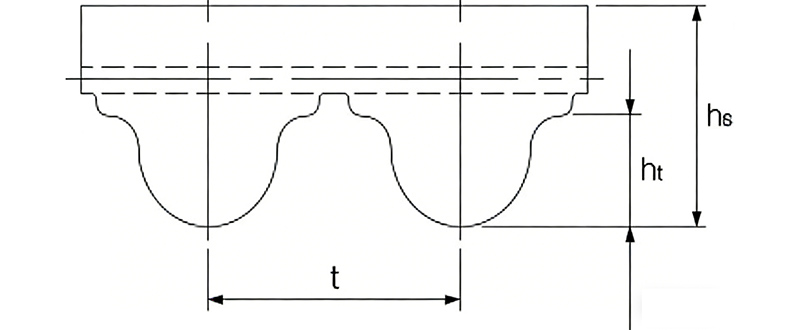

PRODUCT PARAMETERS
Model t hs ht Other Product Details
RPP3M 3.00mm 2.40±0.25mm 1.27mm Click For Details
RPP5M 5.00mm 3.80±0.25mm 2.15mm Click For Details
RPP8M 8.00mm 5.40±0.25mm 3.20mm Click For Details
RPP14M 14.00mm 9.70±0.25mm 6.00mm Click For Details
3M 3.00mm 2.40±0.25mm 1.22mm Click For Details
5M 5.00mm 3.80±0.25mm 2.06mm Click For Details
8M 8.00mm 6.00±0.25mm 3.38mm Click For Details
14M 14.00mm 10.00±0.25mm 6.02mm Click For Details
20M 20.00mm 13.20±0.25mm 8.40mm Click For Details
S2M 2.00mm 1.36±0.25mm 0.76mm Click For Details
S3M 3.00mm 2.20±0.25mm 1.14mm Click For Details
S4.5M 4.50mm 2.81±0.25mm 1.71mm Click For Details
S5M 5.00mm 3.40±0.25mm 1.91mm Click For Details
S8M 8.00mm 5.30±0.25mm 3.05mm Click For Details
S14M 14.00mm 10.20±0.25mm 5.30mm Click For Details
