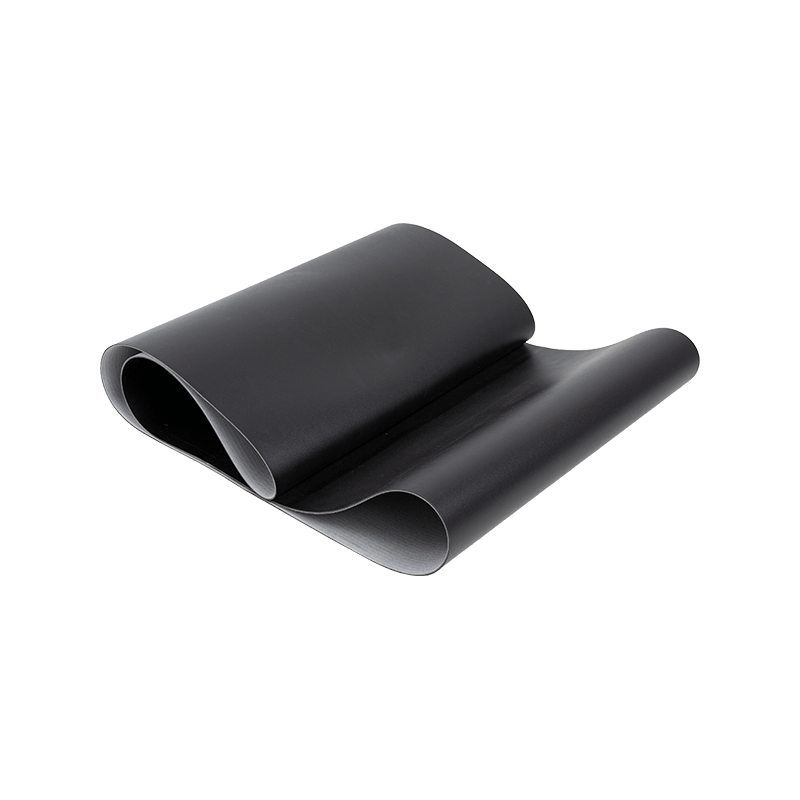

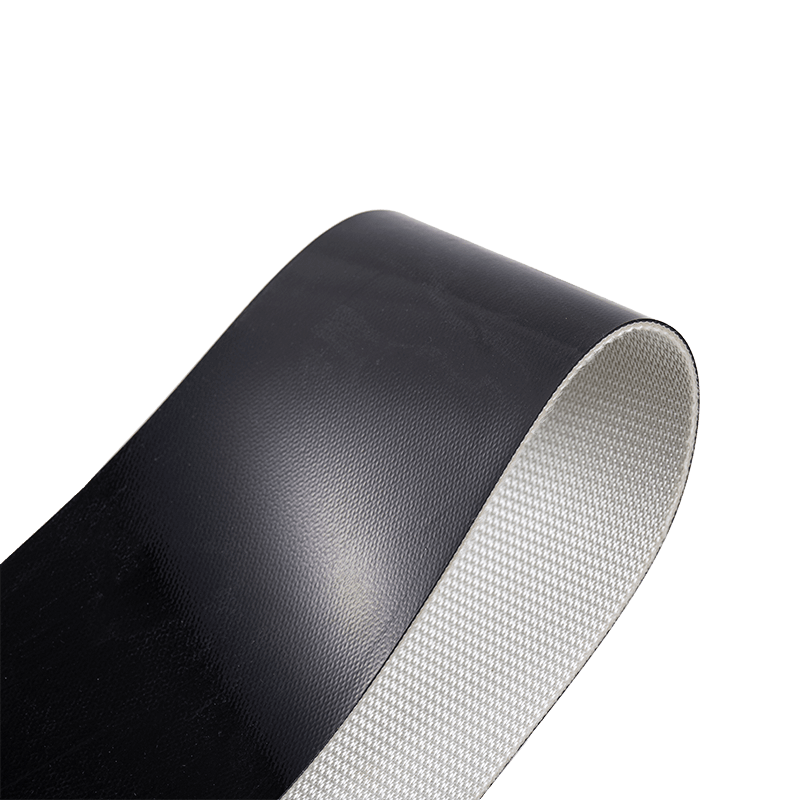

High wear-resistant PVC conveyor belts

Features
Video
Other Information
Recommended Products

Product Selling Points

Intimate Customization Service: The conveyor belt's width, length, and surface pattern can be customized to meet your company's specific needs. Special features can also be added, such as anti-static protection for flammable and explosive environments, and high-temperature-resistant materials for high-temperature environments, to meet your company's personalized production needs.
Hygienic, Environmentally Friendly, and Safe: Non-toxic and odorless, it complies with relevant hygiene standards and does not contaminate the conveyed products. It can be used in industries with stringent hygiene requirements, such as food and pharmaceuticals. Its environmentally friendly and pollution-free nature also aligns with green and sustainable development.
Energy Efficiency: PVC conveyor belts are lightweight, reducing motor energy consumption and equipment operating burden, achieving high energy efficiency. Their lightweight and flexible nature makes installation, maintenance, and replacement easier, saving time and labor costs.

Product	Model	Surface Material			Bottom Material			Thickness	Fabric layer	The minimum roller diameter	1%Nm extension	Unit weight kg/m²	Coefficient of friction	Operating Temperature ℃	Maximum width of production
Product	Model	Surface Color	Surface Patterns	Surface Material	Bottom Color	Bottom Patterns	Bottom Material	Thickness	Fabric layer	The minimum roller diameter	1%Nm extension	Unit weight kg/m²	Coefficient of friction	Operating Temperature ℃	Maximum width of production
Ordinary conveyor belt	H10P1-4W/01	White	Bright light	PVC	White	Grain	PET	1.0	1	10	4	1.0	0.2	-10~+70	3000
	H10P1-4G/01	Green	Bright light	PVC	White	Grain	PET	1.0	1	10	4	1.0	0.2	-10~+70	3000
	H10P1-4BK/01	Black	Bright light	PVC	White	Grain	PET	1.0	1	10	4	1.0	0.2	-10~+70	3000
	H20P2-8G/01	Green	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8W/01	White	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8BL/01	Blue	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8GY/02	Grey	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8BG/01	Dark Green	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8BG/02	Dark Green	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8BK/02	Black	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	S20P2-8BK/02	Black	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8Y/02	Yellow	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H30P2-8W/01	White	Bright light	PVC	White	Grain	PET	3.0	2	60	8	3.3	0.2	-10~+70	3000
	H30P2-8G/01	Green	Bright light	PVC	White	Grain	PET	3.0	2	60	8	3.3	0.2	-10~+70	3000
	H30P2-8BL/01	Blue	Bright light	PVC	White	Grain	PET	3.0	2	60	8	3.3	0.2	-10~+70	3000
	H30P2-8W/02	White	Sub-light	PVC	White	Grain	PET	3.0	2	60	8	3.3	0.2	-10~+70	3000
	H30P2-8BG/02	Dark Green	Sub-light	PVC	White	Grain	PET	3.0	2	60	8	3.3	0.2	-10~+70	3000
	H30P2-8GY/02	Grey	Sub-light	PVC	White	Grain	PET	3.0	2	60	8	3.3	0.2	-10~+70	3000
	H30P2-8BK/02	Black	Sub-light	PVC	White	Grain	PET	3.0	2	60	8	3.3	0.2	-10~+70	3000
	H40P3-12W/01	White	Bright light	PVC	White	Grain	PET	4.0	3	100	12	4.6	0.2	-10~+70	3000
	H40P3-12G/01	Green	Bright light	PVC	White	Grain	PET	4.0	3	100	12	4.6	0.2	-10~+70	3000
	H40P3-12BK/02	Black	Sub-light	PVC	White	Grain	PET	4.0	3	100	12	4.6	0.2	-10~+70	3000
	H40P3-12BG/01	Dark Green	Bright light	PVC	White	Grain	PET	4.0	3	100	12	4.6	0.2	-10~+70	3000
	H50P3-12W/01	White	Bright light	PVC	White	Grain	PET	5.0	3	150	12	6.0	0.2	-10~+70	3000
	H50P3-12G/01	Green	Bright light	PVC	White	Grain	PET	5.0	3	150	12	6.0	0.2	-10~+70	3000
	H60P4-16G101	Green	Bright light	PVC	White	Grain	PET	6.0	4	200	16	7.0	0.2	-10~+70	3000
	H60P4-16W/01	White	Bright light	PVC	White	Grain	PET	6.0	4	200	16	7.0	0.2	-10~+70	3000
	HB0P5-22G/01	Green	Bright light	PVC	White	Grain	PET	8.0	5	220	22	10.0	0.2	-10~+70	3000
	H90P5-22G/01	Green	Bright light	PVC	White	Grain	PET	9.0	5	220	22	11.0	0.2	-10~+70	3000
	H100P5-22G/01	Green	Bright light	PVC	White	Grain	PET	10.0	5	220	22	12.0	0.2	-10~+70	3000
	H30P2-8BL/02	Blue	Sub-light	PVC	White	Grain	PET	3.0	2	60	8	3.3	0.2	-10~+70	3000
	H20P2-8Y/02	Yellow	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8W/02	White	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8BL/02	Blue	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8GY/02	Grey	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8LEN/02	Lemon Yellow	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	N10P1-4FT/01	Transparent	Bright light	PVC	White	Grain	PET	1.0	1	10	4	1.0	0.2	-10~+70	3000
	W20P2-8BG/01	Dark Green	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H70P3-12BK/01	Black	Bright light	PVC	White	Grain	PET	7.0	3	120	12	8.5	0.2	-10~+70	2000
	H30P2-8BK/02-02	Black	Sub-light	PVC	White	Sub-light	PET	3.0	2	60	8	3.6	0.2	-10~+70	3000
	H20P2-8Y/01	Yellow	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8OY/01	Yellow	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	N15P2-8FT/01	Transparent	Bright light	PVC	White	Grain	PET	1.5	2	40	8	1.6	0.2	-10~+70	3000
	N10P1-4FT102	Transparent	Sub-light	PVC	White	Grain	PET	1.0	1	15	4	1.0	0.2	-10~+70	3000
	H13P2-8W/19	White	Grain	PVC	White	Grain	PET	1.3	2	20	8	1.2	0.2	-10~+70	3000
	H18P2-8W/19	White	Grain	PVC	White	Grain	PET	1.8	2	40	8	1.7	0.2	-10~+70	3000
	S20P1-8BK/04	Black	浅Diamond Grain	PVC	White	Grain	PET	2.0	1	30	6	2.2	0.2	-10~+70	3000
	H20P2-8BK/03	Black	Diamond Grain	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8W/03	White	Diamond Grain	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8G/03	Green	Diamond Grain	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H30P2-8G/03-01	Green	Diamond Grain	PVC	White	Bright light	PET	3.0	2	80	8	3.2	0.2	-10~+70	3000
	H30P2-8W/03	White	Diamond Grain	PVC	White	Grain	PET	3.0	2	60	8	3.0	0.2	-10~+70	3000
	H30P2-8G/03	Green	Diamond Grain	PVC	White	Grain	PET	3.0	2	60	8	3.0	0.2	-10~+70	3200
	H50P3-12G/03-01	Green	Diamond Grain	PVC	White	Green	PVC	5.0	3	150	8	5.2	0.2	-10~+70	2000
	H50P3-12G/03	Green	Diamond Grain	PVC	White	Grain	PET	5.0	3	150	8	5.1	0.2	-10~+70	2000
	H28P2-8G/12	Green	Straight stripes	PVC	White	Grain	PET	2.8	2	60	8	2.8	0.2	-10~+70	2000
	H28P2-8BL/12-0T/WA	Blue	Straight stripes	PVC	White	Grain	PET	2.8	2	60	8	2.8	0.2	-10~+70	2000
	H30P2-8BK/12	Black	Straight stripes	PVC	White	Grain	PET	3.0	2	60	8	3.0	0.2	-10~+70	2000
	H28P2-8BG/06	Dark Green	l-word grid	PVC	White	Grain	PET	2.8	2	60	8	3.0	0.2	-10~+70	2000
	H50P2-8W/20	White	Fish bone pattern	PVC	White	Grain	PET	5.0	2	80	8	5.2	0.2	-10~+70	2000
	H50P2-8G/20	Green	Fish bone pattern	PVC	White	Grain	PET	5.0	2	80	8	5.2	0.2	-10~+70	2000
	H50P2-8GY/20	Grey	Fish bone pattern	PVC	White	Grain	PET	5.0	2	80	8	5.2	0.2	-10~+70	2000
	H60P2-8BG/20	Dark Green	Fish bone pattern	PVC	White	Grain	PET	6.0	2	100	8	6.5	0.2	-10~+70	2000
	H60P2-8GY/20	Grey	Fish bone pattern	PVC	White	Grain	PET	6.0	2	100	8	6.5	0.2	-10~+70	2000
S60P2-17G/11-03	Green	Washboard grain	PVC	White	Diamond Grain	PET	6.0	2	120	17	6.5	0.2	-10~+70	2000
H50P2-8G/11	Green	Washboard grain	PVC	White	Grain	PET	5.0	2	80	8	5.2	0.2	-10~+70	2000
H40P2-8G/08	Green	Light pattern grass belt	PVC	White	Grain	PET	4.0	2	60	8	4.0	0.2	+5~+60	3000
H50P2-8BG/09	Dark Green	Deep patterned grass belt	PVC	White	Grain	PET	5.0	2	60	8	4.5	0.2	+5~+60	3000
H50P2-8BK/09	Black	Deep patterned grass belt	PVC	White	Grain	PET	5.0	2	60	8	4.5	0.2	+5~+60	3000
H50P2-8RR/09	Rose red	Deep patterned grass belt	PVC	White	Grain	PET	5.0	2	60	8	4.5	0.2	+5~+60	3000
H50P2-8Y/09	Yellow	Deep patterned grass belt	PVC	White	Grain	PET	5.0	2	60	8	4.5	0.2	+5~+60	3000
H60P3-12BG/09	Dark Green	Deep patterned grass belt	PVC	White	Grain	PET	6.0	3	100	12	6.5	0.2	+5~+60	3000
H50P2-8G/05	Green	Medium pattern grass belt	PVC	White	Grain	PET	5.0	2	60	8	4.8	0.2	+5~+60	3000
H50P2-8G/09	Green	Deep patterned grass belt	PVC	White	Grain	PET	5.0	2	60	8	4.5	0.2	+5~+60	3000
S50P2-10BG/10	Dark Green	Wavy grass	PVC	White	Grain	PET	5.0	2	60	8	4.8	0.2	+5~+60	3000
S50P2-17G/08	Green	Light pattern grass belt	PVC	White	Grain	PET	5.0	2	60	8	5.0	0.2	+5~+60	3000
H70P2-8G/14	Green	The big herring bone pattern 600	PVC	White	Grain	PET	7.0	2	120	8	6.5	0.2	-10~+70	600
H50P2-8G/13	Green	herringbone pattern	PVC	White	Grain	PET	5.0	2	80	8	4.5	0.2	-10~+70	2000
H50P2-8G/43	Green	The big herringbone pattern	PVC	White	Grain	PET	5.0	2	100	8	3.5	0.2	-10~+70	2000
H50P2-8G/23	Green	Polka dots	PVC	White	Grain	PET	5.0	2	80	8	3.5	0.2	-10~+70	2000
H98P3-12BK117	Black	Diamond lattice	PVC	White	Grain	PET	9.8	3	100	12	9.2	0.2	-10~+70	2000
H98P3-12BL/17	Blue	Diamond lattice	PVC	White	Grain	PET	9.8	3	100	12	9.2	0.2	-10~+70	2000
H98P3-12BG/17	Dark Green	Diamond lattice	PVC	White	Grain	PET	9.8	3	100	12	9.2	0.2	-10~+70	2000
H98P3-12BK/16	Black	One-character pattern	PVC	White	Grain	PET	9.8	3	100	12	9.2	0.2	-10~+70	2000
H98P3-12BL/16	Blue	One-character pattern	PVC	White	Grain	PET	9.8	3	100	12	9.2	0.2	-10~+70	2000
H98P3-12GY/16	Grey	One-character pattern	PVC	White	Grain	PET	9.8	3	100	12	9.2	0.2	-10~+70	2000
H120P4-70BG/29	Dark Green	Mesh pattern	PVC	White	Grain	PET	12.0	4	450	24	13.6	0.2	-10~+70	2000
H70P2-8BG/28	Dark Green	Convex teeth	PVC	White	Grain	PET	7.0	2	80	8	5.8	0.2	-10~+70	2000
H70P2-8BG/27	Dark Green	Two-way convex teeth	PVC	White	Grain	PET	7.0	2	80	8	5.8	0.2	-10~+70	2000
S16P1-4W/21	White	Turf pattern	PVC	White	Grain	PET	1.6	1	30	4	1.5	0.2	-10~+70	2000
H70P2-10R/40	Red	Grain	PVC	White	Grain	PET	7.0	2	100	8	8.0	0.2	-10~+70	2000
H15P2-8W/19	White	Grain	PVC	White	Grain	PET	1.5	2	40	8	1.3	0.2	-10~+70	3000
H20P2-8BL/03	Blue	Diamond Grain	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
S50P2-8G/05	Green	Medium pattern grass belt	PVC	White	Grain	PET	5.0	2	60	8	4.8	0.2	+5~+60	3000
S12P1-4BK/04	Black	Light Diamond Grain	PVC	White	Grain	PET	1.2	1	20	4	1.2	0.2	-10~+70	3000
Anti-static conveyor belt	N10P1-4FT/01-HC9	Transparent	Bright light	PVC	White	Grain	PET	1.0	1	10	4	1.0	0.2	-10~+70	3000
	H20P2-8G/01-HC8	Green	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8G/01-HC9	Green	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8G/02-HC8	Green	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8G/02-HC9	Green	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8GY/01-HC8	Grey	Bright light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8BK/02-HC9	Black	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H20P2-8Y102-HC9	Yellow	Sub-light	PVC	White	Grain	PET	2.0	2	40	8	2.2	0.2	-10~+70	3000
	H18P2-8BK119-HC6	Black	Grain	PVC	White	Grain	PET	1.8	2	40	8	1.7	0.2	-10~+70	3000
	H30P2-8BK12-HC9	Black	Straight stripes	PVC	White	Grain	PET	3.0	2	60	8	3.0	0.2	-10~+70	3000
	H28P2-8BK/06-HC9	Black	l-word grid	PVC	White	Grain	PET	2.8	2	60	8	3.0	0.2	-10~+70	3200
	H30P2-8G/01-HC8	Green	Bright light	PVC	White	Grain	PET	3.0	2	60	8	3.3	0.2	-10~+70	3000
Temperature resistant conveyor bet	H20P2-8W/25	White	Grain	PVC	White	Grain	PET	2.0	2	60	8	2.2	0.2	-10~+100	3000
	H30P3-10W/25	White	Fine canvas	PVC	White	Grain	PET	3.0	2	70	8	3.0	0.2	-10~+100	3000
	H40P3-12W/25	White	Fine canvas	PVC	White	Grain	PET	4.0	3	120	12	4.0	0.2	-10~+100	3000
	H50P3-12W/26	White	Rough canvas	PVC	White	Grain	PET	5.0	3	150	12	6.0	0.2	-10~+120	3000
	H50P3-12W/03-26	White	Rough canvas	PVC	White	Diamond Grain	PET	5.0	3	150	12	5.8	0.2	-10~+120	3000
	H30P2-8BK/N	GreyBlack	Felt	PVC	White	Grain	PET	3.0	3	70	8	3.0	0.2	-10~+120	2000
	H40P2-12BK/N	GreyBlack	Felt	PVC	White	Grain	PET	4.0	2	100	8	4.0	0.2	-10~+120	2000
	NOVO25-HC/BK	GreyBlack	Felt	PVC	White	Felt	PET	2.5	2	40	4	1.3	0.2	-10~+120	2000
	NOVO40-HC/BK	GreyBlack	Felt	PVC	White	Felt	PET	4.0	1	70	10	3.1	0.2	-10~+120	2000
	NOVO55-HC/BK	GreyBlack	Felt	PVC	White	Felt	PET	5.5	1	120	10	3.1	0.2	-10~+120	2000
	H20P1-4BK/N	GreyBlack	Felt	PVC	White	Felt	PET	2.0	1	60	4	2.2	0.2	-10~+120	2000
Food conveyor belt	H13P2-8W/19	White	Grain	PVC	White	Grain	PET	1.3	2	20	8	1.2	0.2	-10~+70	3000
	H18P2-8W/19	White	Grain	PVC	White	Grain	PET	1.8	2	40	8	1.7	0.2	-10~+70	3000
	H15P2-8W/19	White	Grain	PVC	White	Grain	PET	1.5	2	40	8	1.3	0.2	-10~+70	3000
	H30P2-8W/02-OT	White	Sub-light	PVC	White	Grain	PET	3.0	2	60	8	3.3	0.2	-10~+70	3000
	H40P3-12W/01-0T	White	Bright light	PVC	White	Grain	PET	4.0	2	100	12	4.6	0.2	-10~+70	3000

Product Description

PVC conveyor belts are industrial products made of a polyvinyl chloride (PVC) rubber surface bonded to a polyester fabric. They offer advantages such as wear resistance, corrosion resistance, and stable operation. With customized services and a hygienic and environmentally friendly design, they are widely used in industries such as food, chemicals, and logistics. The following are some of their advantages:

Product Advantages

Wear and Corrosion Resistance: PVC conveyor belts offer excellent wear resistance, making them less susceptible to wear and scratching when handling rough and sharp materials. They are also resistant to chemical corrosion, such as acids and alkalis, and organic solvents, ensuring stable operation in environments such as chemical production.

Excellent Operational Stability: PVC conveyor belts maintain stability at high speeds, preventing wobbling or deviation. They ensure accurate material delivery to designated locations and work seamlessly with other equipment on automated production lines, improving production efficiency.

Strong Load Capacity: Available in a variety of thicknesses and strengths to meet the needs of various industrial applications. Whether carrying lightweight plastic granules, heavy metal parts, or even heavy objects like sand, gravel, and cement, they can easily carry these loads, ensuring the smooth flow of materials throughout the production line.

Automotive Industry

Applications
Food Processing Industry: Suitable for conveying, baking, freezing, and packaging food, such as mooncake panning and dough rolling, ensuring food hygiene and preventing damage from squeezing.
Chemical Industry: Suitable for conveying chemical raw materials. Resistant to corrosion from strong acids and alkalis, it can convey sulfuric acid, hydrochloric acid, and sodium hydroxide solutions. Logistics and Warehousing Industry: Used for cargo packaging, transportation, loading and unloading, and sorting, it meets the logistics industry's demand for efficient and stable material transport and can quickly sort large quantities of goods.
Electronics Manufacturing Industry: Suitable for conveying delicate materials such as chips and circuit boards. Its smooth surface and smooth operation are low in static electricity, preventing damage to sensitive electronic components and maintaining a clean production environment.
Building Materials Industry: Suitable for handling heavy materials such as sand, gravel, cement, and bricks in building materials production. It can withstand heavy loads, prevent material leaks, and maintain a clean production environment.
Printing and Paper Industry: Used for conveying and handling paper, printed materials, and cardboard in printing presses and paper production lines, it ensures smooth conveying of paper and other materials, helping to improve printing quality and production efficiency.
